ADSS ದಂಪ್ರ ಜ್ಯಾಕೆಟ್ ದೀರ್ಘಕಾಲದ ಸ್ವ- ಬೆಂಬಲವಿಲ್ಲದ ಮೈಲನ ಆಪ್ಟಿಕ್ ಫೀಬರ ಚೇಲ

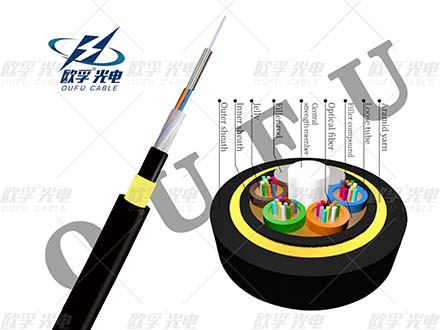

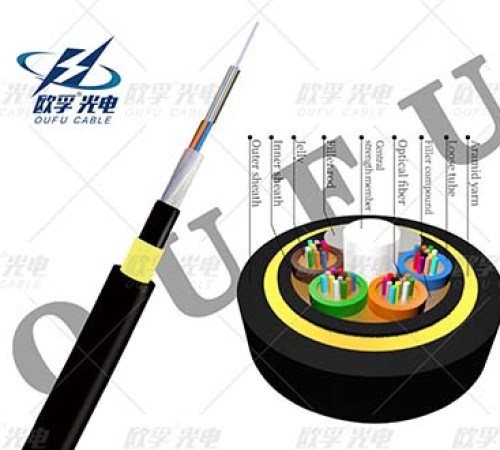

ADSS cable is a loose tube-stranded structure. The optical fiber is 250pm, and the loose tube is made of high-modulus plastic, which is filled with a waterproof compound. ln the center of the cable core is an FRP-strength member, The loose tube (and the filling rope) is twisted around the central reinforcement core to form a compact and round cable core, and the gap in the cable core is filled with a water-blocking filler. The outer of the cable is a polyethylene (PE) inner sheath, then twisted high tensile strength aramid, and the outermost is the electric tracking (AT) outer sheath.

• All-electrical self-supporting aerial ಫೈಬರ್ ಆಪ್ಟಿಕ್ ಕೇಬ್, with no metal material in the structure, can be set up without interruption.

• Large number of fiber cores, lightweight, can be laid with the power line, saving resources.

• Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots.

• Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.

• Double jacket, PE/AT Oute sheath.

• Large span, the maximum span exceeds 1000 meters.

• Life expectancy greater than 30 years.

• Transport/storage temperature: -40°C to 70C

• Self-supporting aerial
